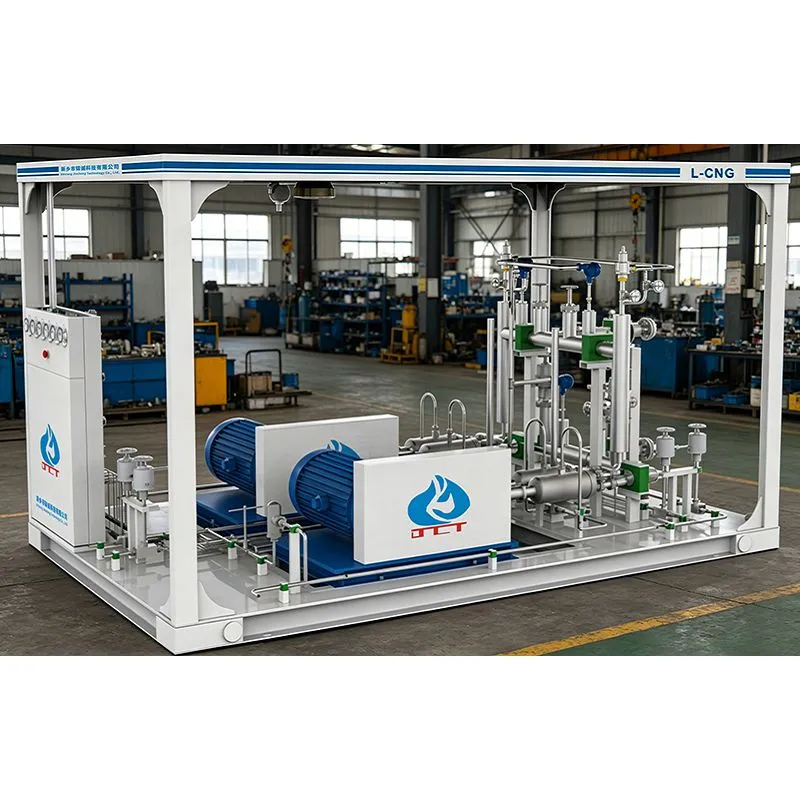

The LNG skid-mounted system is a modular integrated skid-type natural gas supply system that integrates LNG transportation, vaporization, pipelines, pressure regulation, control and other functions into a single frame. It features high integration, easy operation, a small footprint and high automation.
|
Item |
Parameters |
|
Applicable Medium |
Liquefied Natural Gas (LNG) |
|
Overall Dimension (L×W×H) |
4000×2250×2540 mm |
|
Designed Head |
220~280 m |
|
Designed Rotation Speed |
5800 r/min |
|
Designed Flow Rate |
360 L/min |
|
Design Pressure (Inlet/Outlet of Pump) |
1.6/2.5 MPa |
|
Working Pressure (Inlet/Outlet of Pump) |
1.0/1.6 MPa |
|
Design Temperature |
-196 °C |
|
Operating Temperature |
-162 °C |
|
Pipeline Flange Nominal Pressure |
4.0 MPa |
Product Application
Small-scale Gas Stations
With low costs and a small footprint, it is the optimal choice for small gas supply stations.
Industrial Parks
Featuring high integration, the unit allows convenient short-distance transportation.
Remote Areas
It is easy to relocate and adaptable to various road conditions, making it suitable for LNG supply in remote towns and field projects.
