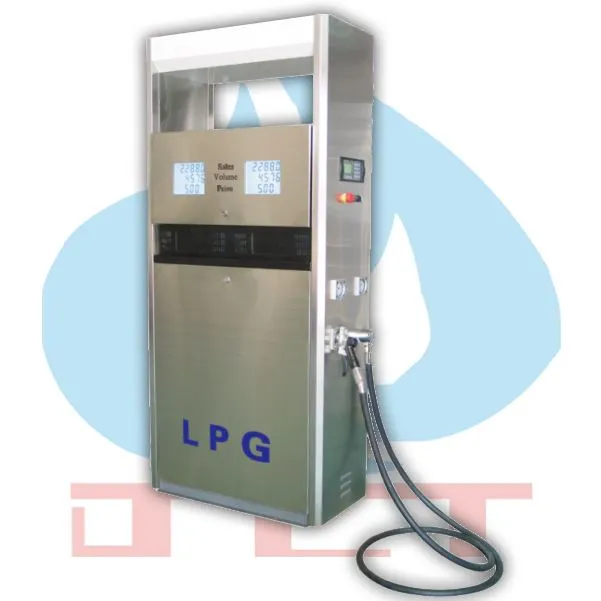

LPG dispenser is the core equipment of the LPG refueling system. It adopts a high-precision flowmeter to realize accurate metering and filling of liquefied petroleum gas. As special equipment for quantitative measurement, metering and safe filling of LPG, it is widely applied in various commercial gas stations, industrial gas supply systems, cylinder filling stations and other scenarios.
|
Parameter Item |
Parameter Value |
|
Ambient Temperature |
-40℃ ~ +55℃ |
|
Flow Range |
1-45 L/min |
|
Metering Accuracy |
±0.5% |
|
Rated Working Pressure |
2.2 MPa |
|
Density Setting Range |
0.5000-0.6999 |
|
Preset Filling Range |
1~9900 L or kg |
|
Power |
＜100 W |
Why Choose Us
Comprehensive Explosion-proof Design
Equipped with explosion-proof motor, explosion-proof solenoid valve, explosion-proof display controller, anti-static grounding system and other components. It is fully applicable to hazardous and flammable explosive working areas.
All-round safety protection system
Equipped with emergency shut-off valves, breakaway-proof filling nozzles, reserved leakage detection ports and automatic overpressure shutdown function.
Modular Design
Easy for maintenance. All core components are independent modules, enabling convenient repair if damaged.
High Precision
It is equipped with automatic temperature compensation, automatic valve closing flow adjustment, electronic calibration and other functions to reduce measurement errors.
Versatile Functions
It features full amount stop, machine lock and other built-in functions, and supports decimal point shifting to comply with currency standards of different countries.
