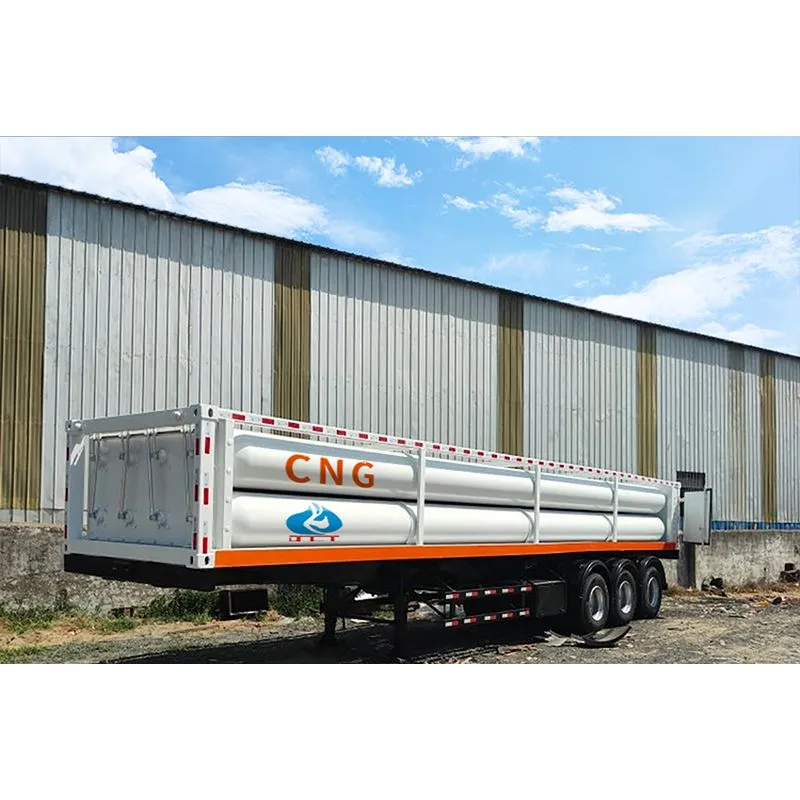

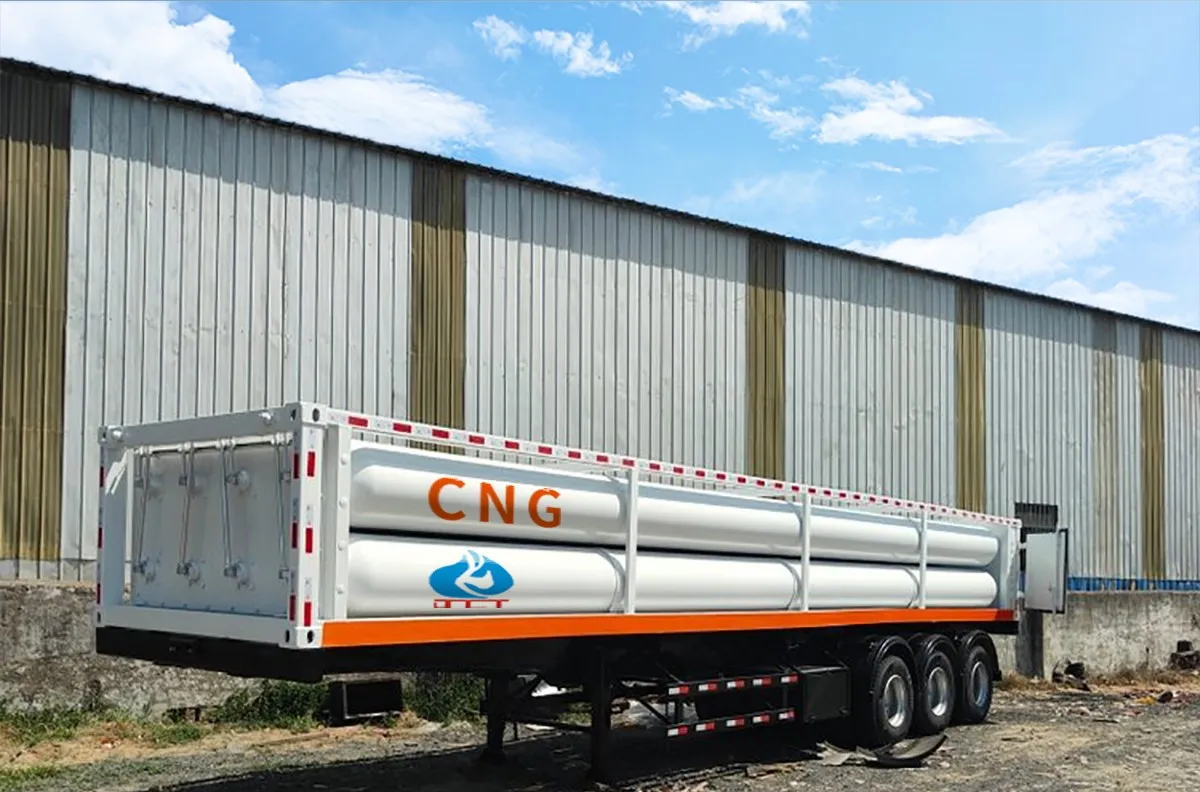

CNG Tube Bundle - Designed for Compressed Natural Gas Storage and Transportation
CNG tube bundles are also an important component of CNG semi-trailers. JCT Company manufactures them with high-quality steel. The steel cylinders boast high strength, and the cylinder bank features excellent material toughness, uniform force bearing and rational stress distribution. It is simple to operate, easy to maintain, widely applicable and convenient for transportation.
Product Advantages
1. Multiple combination options available, suitable for various gas supply solutions.
2. Multiple inspections are conducted. Every product has passed strict tests including bursting, flaw detection and fatigue testing to ensure reliable product quality.
3. High safety performance. Pressure relief devices are installed at both ends for automatic pressure release under abnormal conditions.
4. Modular design, enabling quick loading and unloading with easy operation.
5. Long service life with multiple anti-corrosion treatments.
CNG Tube Bundle Container Product Parameters
|
Item |
Value |
|
Filling Medium |
Compressed Natural Gas |
|
Nominal Volume |
25.02 m³ |
|
Volume of Filling Medium |
6339 Nm³ |
|
Mass of Filling Medium |
4417 kg |
|
Cylinder Quantity |
6 units |
|
Nominal Working Pressure |
20 MPa |
|
Hydrostatic Test Pressure |
33.4 MPa |
|
Tightness Test Pressure |
20 MPa |
|
Empty Container Mass |
30037 kg |
|
Overall Dimension (L × W × H) |
12850mm*2438mm*1500 mm |
