Compressed Natural Gas Dispenser

Details:

Applicable medium: Compressed Natural Gas (CNG)
Flow range: 1kg/min~30kg/min
Maximum working pressure: 25MPa
Rated working pressure: 20MPa
Maximum permissible error: ±1.0%

Send Inquiry

Download

Description

Technical Parameters

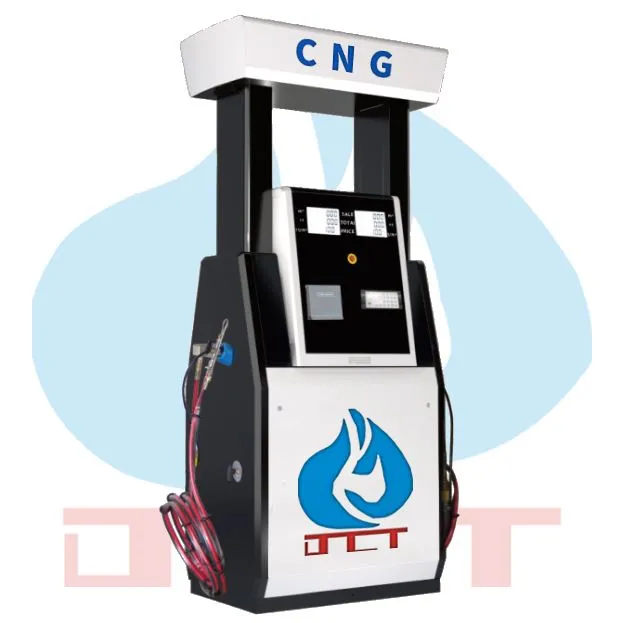

CNG Dispenser

JCT's high-precision refueling equipment is specially designed for CNG. It is suitable for CNG filling stations and small-scale refueling systems, delivering safe, stable and fast refueling services.

Product Parameters

Parameter Name	Specification
Applicable medium	Compressed Natural Gas (CNG)
Flow range	1kg/min~30kg/min
Maximum working pressure	25MPa
Rated working pressure	20MPa
Maximum permissible error	±1.0%
Explosion-proof grade	Exdeibmb ⅡAT3 Gb
Working temperature	-25°C~55°C
Working humidity	≤95%RH
Power supply	220VAC, 50Hz±1Hz

Product Advantages

● High-precision flow meter

● Fast refueling

● Multiple safety protections

● Compatible with intelligent management system

● Suitable for use in extreme environments

FAQ

Q: Do you provide installation services?

A: We have professional technicians to provide on-site installation guidance and operation training upon request, along with installation manuals and training videos.

Q: Can it meet our national standards?

A: Our products meet the connector and other relevant standards of most countries. If you have additional requirements, our technical staff can customize solutions for you.
